Huatao Supply Self-Cleaning Filter To One Of Glass Wool Insulation Customer

Customer Background:

Customer producing glass wool insulation materials. For the binder application, process water treatment/filtration is needed.

In customer‘s process water there are remains of phenolic resin, glass fibers, mud, etc.. Customer tried several different self-cleaning

filters but with no satisfactory results.

HUATAO’s solution:

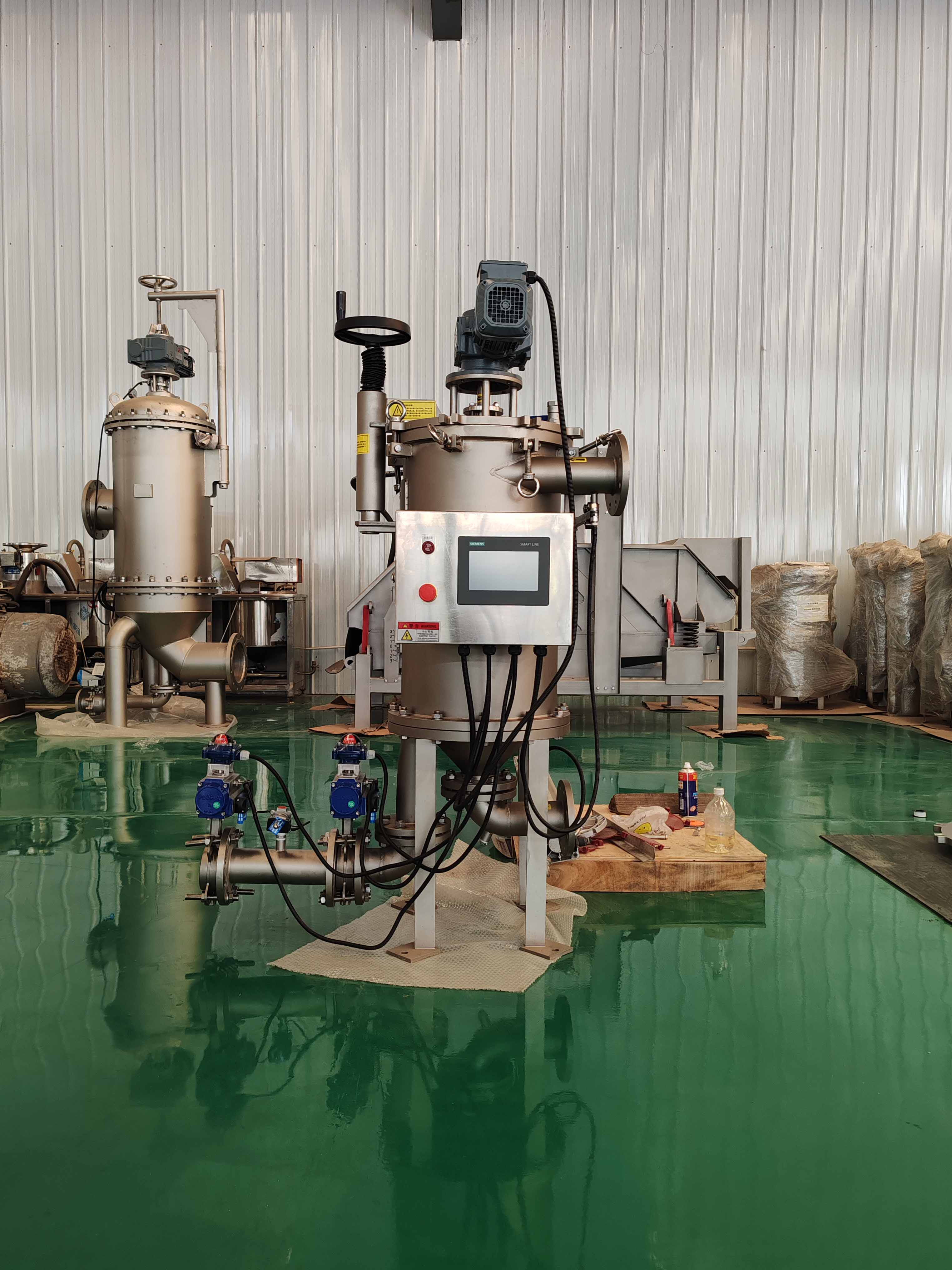

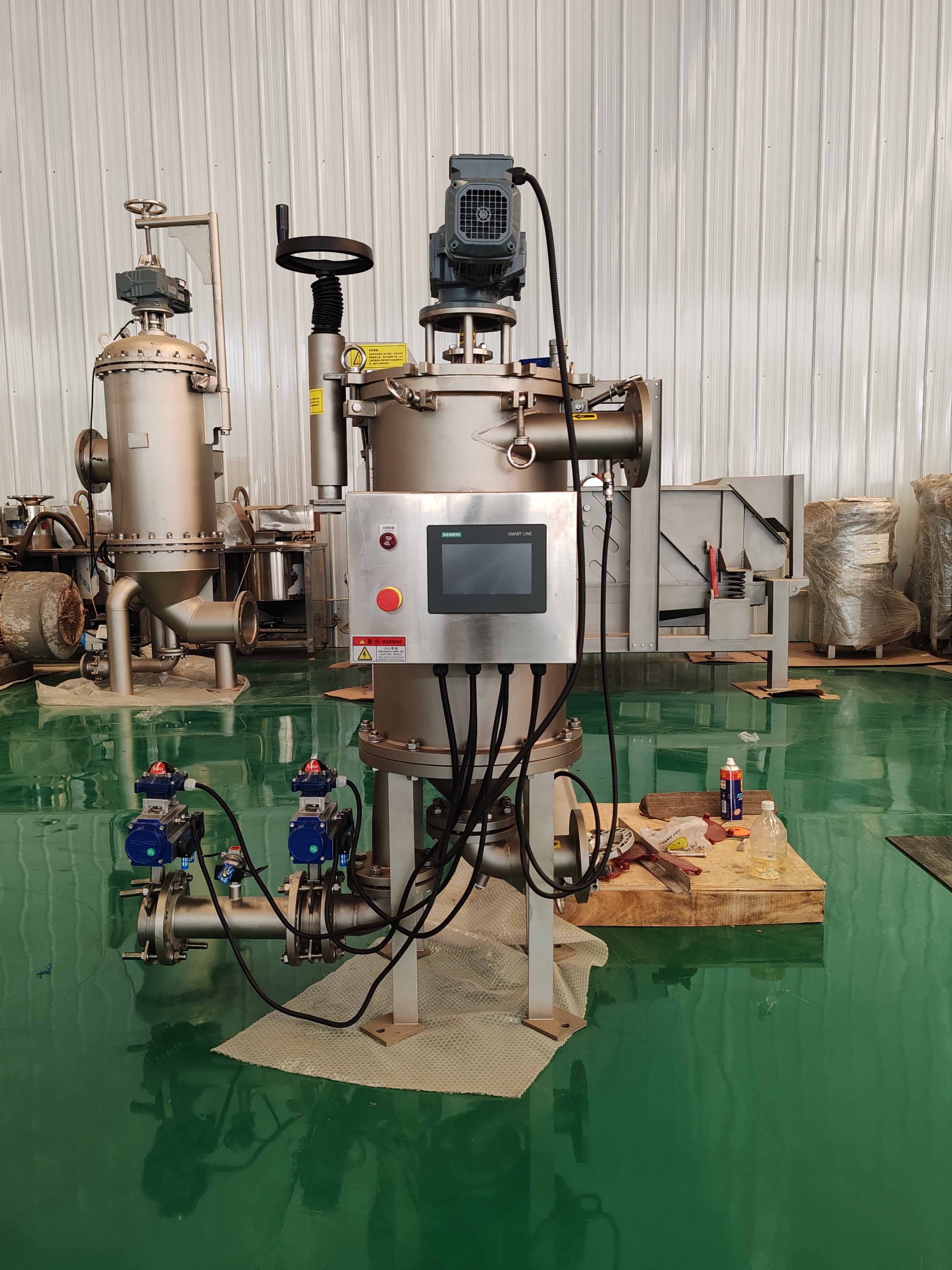

HUATAO supply the self-cleaning Filter to customer, the order details as below:

Material: 304 stainless steel

Diameter: 550mm

Built-in stainless steel wedge mesh,

filtration accuracy: 50μm

Stainless steel bracket +stainless steel brush set

Working pressure: 0.8 MPa

Water inlet and outlet: DN50 flange, or as required

power: 0.55KW

Electrical control mode: AC

Control mode: time, pressure difference, manual

Siemens PLC touch, a set of pressure sensors
