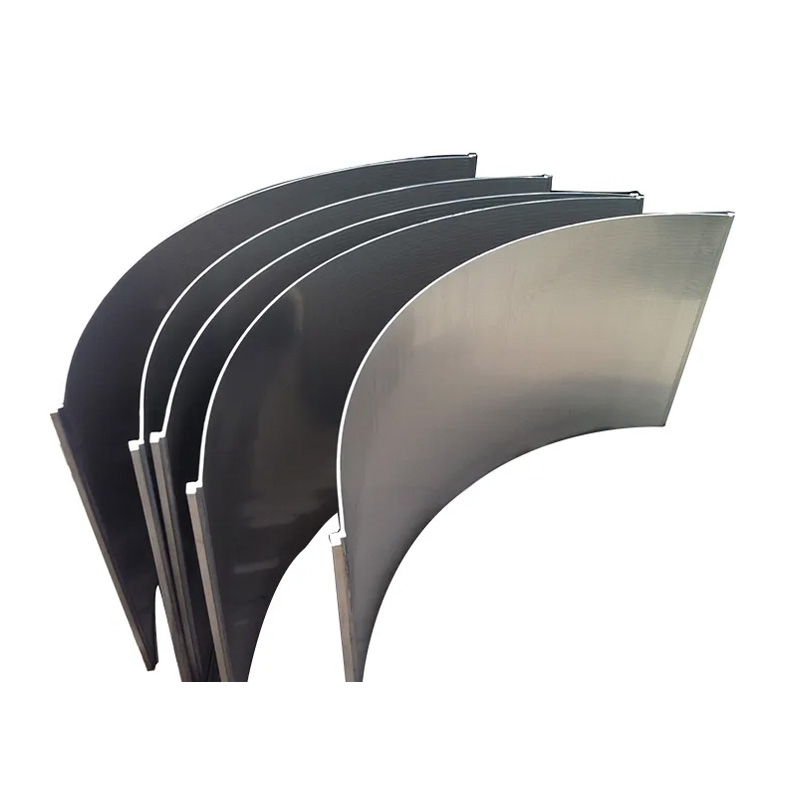

Pressure Arc Bend Screen for Maize Germ Separation

Description of  Pressure Arc Bend Screen for Maize Germ Separation

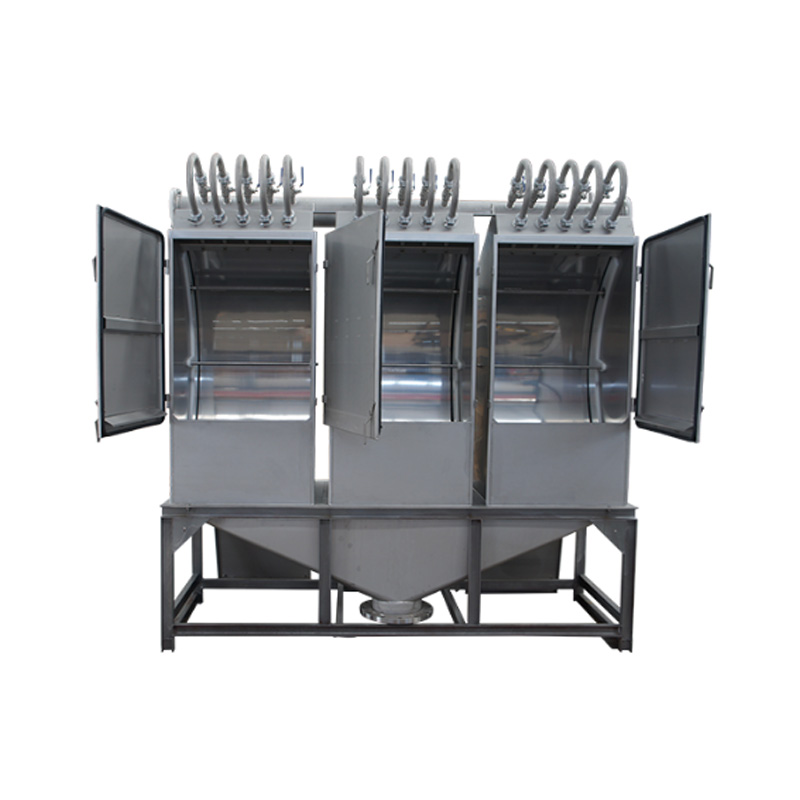

DSM Screen also called 120° bent screen, 120° Sieve Bend Screen , Johson screen,etc. Our DSM screen is mainly used in the Starch Industry for germ washing and fiber separation and washing.HUATAO's DSM screen has reached the international level in both filtering accuracy and screening efficiency. It is an ideal substitute for foreign products (euro Slot from France, Johnson Screens from the United States, TRI slot from Belgium, Aqseptence Group from Australia),saving you a lot of money and reducing production costs.

Specifications

1. Material grade: ASTM 316L
2. Screen Slots:45um,50um, 75um, 100um, 120um, 150um, 200um;
3. Screen Arc Angle: 120°
4. Surface wedge wires: 10s, or customized.
5. Support rods: Q25, or customized.
6. Screen L frames: 20×20×10 mm, or customized.
7. Screen Capacity: 34 to 46 Cubic meter per hour
8. Feeding pressure: 0.2–0.4 MPa
9. Screen width: 585 mm, 710 mm, 825 mm or customized.
10. Screen Arc Length: 1595 mm
11. Screen Arc Radius: 762 mm
12. Screen Direction: Two-way use and one-way use for choice. When no demands, we make two-way use for long service life.

Advantages

1. The effect of fiber separation is more significant.
2. It can withstand higher flow rates.
3. The special material greatly improves the service life.
4. After surface treatment, the impact resistance is better.
