Material:SS304/SS304L/SS316L/SS316L/SS321/2205/2507/90
Warranty:1year
Application:Lithium battery slurry filtration & Lithium iron phosphate filtration

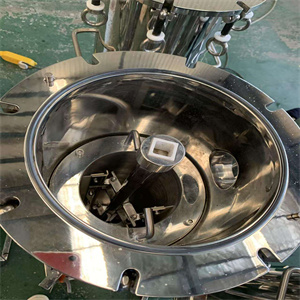

Description Of Lithium Battery Slurry Self-Cleaning Filter
HUATAO's lithium battery slurry filter provide a versatile method of filtering your process fluids.The filter can be set up for fully or semi-automated
operation. dynamic battery slurry blend filters are an inexpensive way to handle your slurries.The filters are made to be mobile so slurries can be
mixed and wheeled into the fab rather than mixing slurry in the fab.
Technical Parameters Of Lithium Battery Slurry Self Cleaning Filter
| Model | Filter Diameter | Filter Height | Thickness | Filter Area | Slot |
| HTS-D219 | 250mm | 500mm | 3mm | 0.2 | 20Microns |
| HTS-D240 | 300mm | 800mm | 4mm | 0.5 | |
| HTS-D380 | 400mm | 1000mm | 4mm | 0.6 | |
| HTSW-D219 | 250mm | 500mm | 3mm | 0.2 | |
| HTSW-D273 | 300mm | 900mm | 4mm | 0.5 | |
| HTSW-D377 | 400mm | 1000mm | 4mm | 0.6 | |
| HTSW-D480 | 500mm | 1200mm | 6mm | 0.7 |
Feature Of Lithium Battery Slurry Self-Cleaning Filter
1.High-precision slot opening: Min. Slot 20 microns. Suitable for high viscosity and high temperature liquids.
2.Stainless steel structure: Special materials, corrosion and rust prevention.Suitable for the lithium battery industry
3.High automation degree:Which can work on-line continuously,no manual cleaning frequently.
4.No disposable consumables Save filter media cost and environment cost.
Application Of Lithium Battery Slurry Self-Cleaning Filter
Lithium-ion battery industry: Widely used in power lithium-ion batteries, cathodes, lithium iron phosphate, and automatic slurry filtration and
conveying processes for lithium-ion battery coating machines.
